Sennheiser XSW 1-835-A Wireless System
Sennheiser XSW 1-835-A Wireless System
SKU:XSW1835A
3 in stock
Couldn't load pickup availability
Shipping & Condition
Shipping & Condition
Orders are typically prepared for shipment six days a week. Our goal is to ship orders the same day, if the order is placed before 1 PM CST on a weekday. Due to the value of many of our products, a Delivery Signature is typically required.
Most products on our website are new. We also occasionally sell demo or blemished products. These items will be labeled accordingly on our website. For definitions of the different products conditions please click here.
If this is a gift for someone special, please keep in mind that most items arrive in packaging that reveals what's inside.

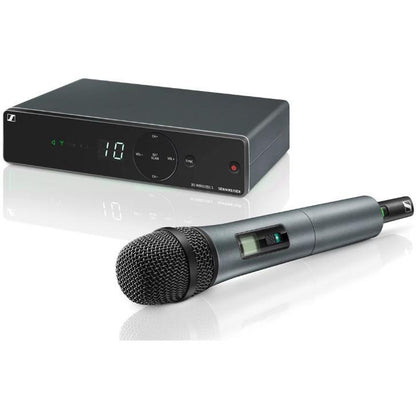

The Sennheiser XS WIRELESS 1 VOCAL SET is an easy-to-use all-in-one wireless system for singers and presenters. It's excellent for live sound and features Sennheiser’s renowned e825 and e835 evolution microphone capsules.
The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a vocal microphone and microphone clamp.
Raise your voice and go for the Sennheiser XS WIRELESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band.
What's in the Box:

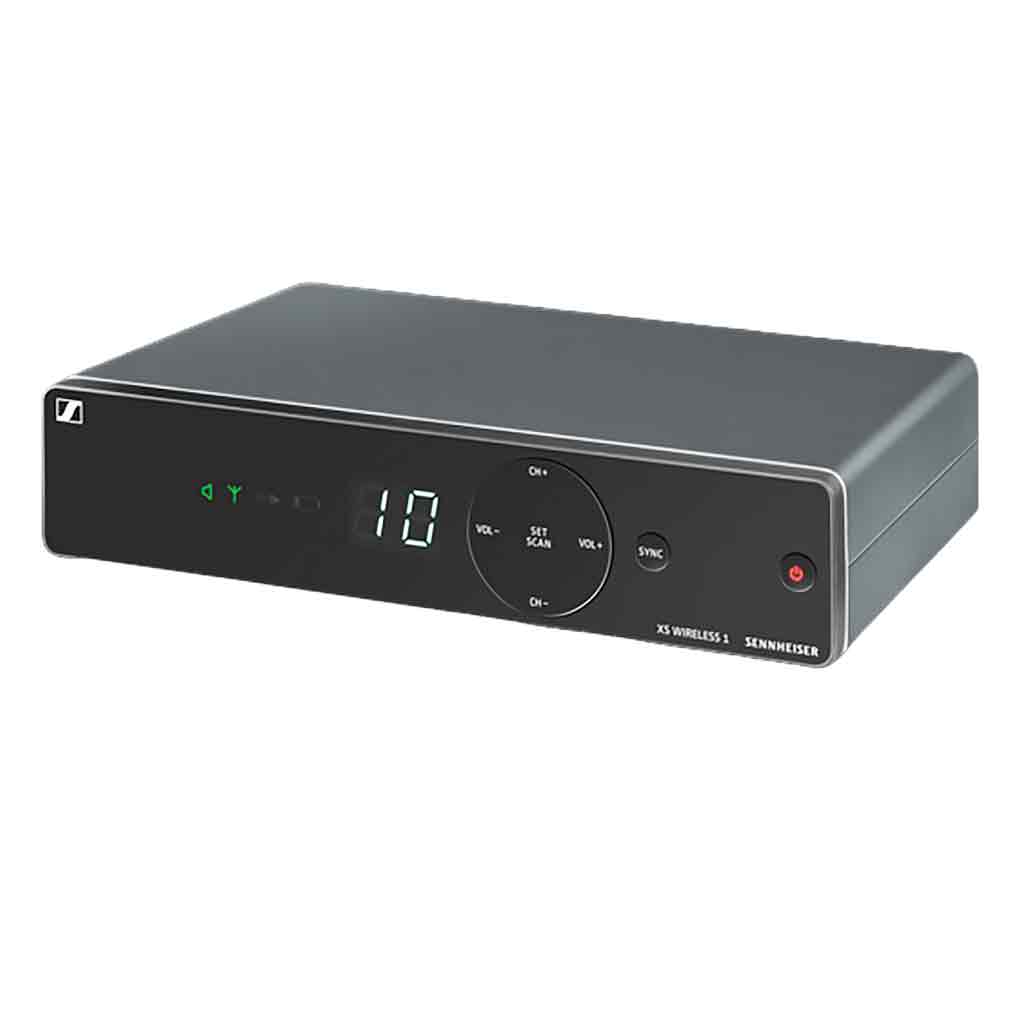

- 1 receiver EM-XSW 1

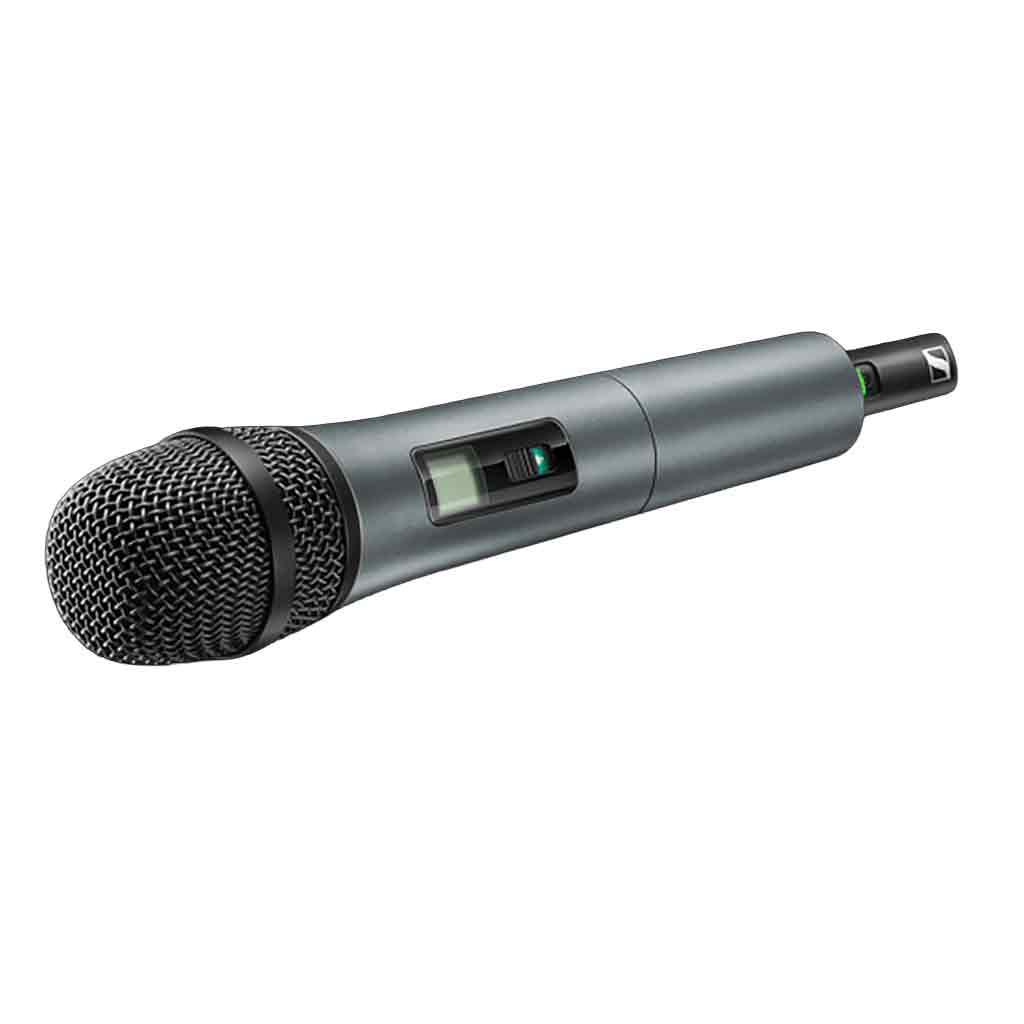

- 1 handheld transmitter SKM 825-XSW or SKM 835-XSW
- 1 microphone clamp MZQ 1
- 1 power supply NT 12-5 CW
- 2 AA batteries
Features
- Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules (e825 or e835)
- Antenna-switching diversity reception
- Integrated antennas
- Automatic frequency management and synchronization via remote channel for easy setup
- Selectable UHF frequencies within a large bandwidth
- Up to 10 compatible channels
Sennheiser XSW 1-835-A Specs
- Dimensions:approx. 200 x 42 x 127 mm
- THD, total harmonic distortion: ≤ 0.9%
- Pick-up pattern: cardioid
- Signal-to-noise ratio: ≥ 103 dBA
- RF output power: 10 mW
- Switching bandwidth: up to 24 MHz
- Operating time: approx. 10 hrs
- Modulation: wideband FM

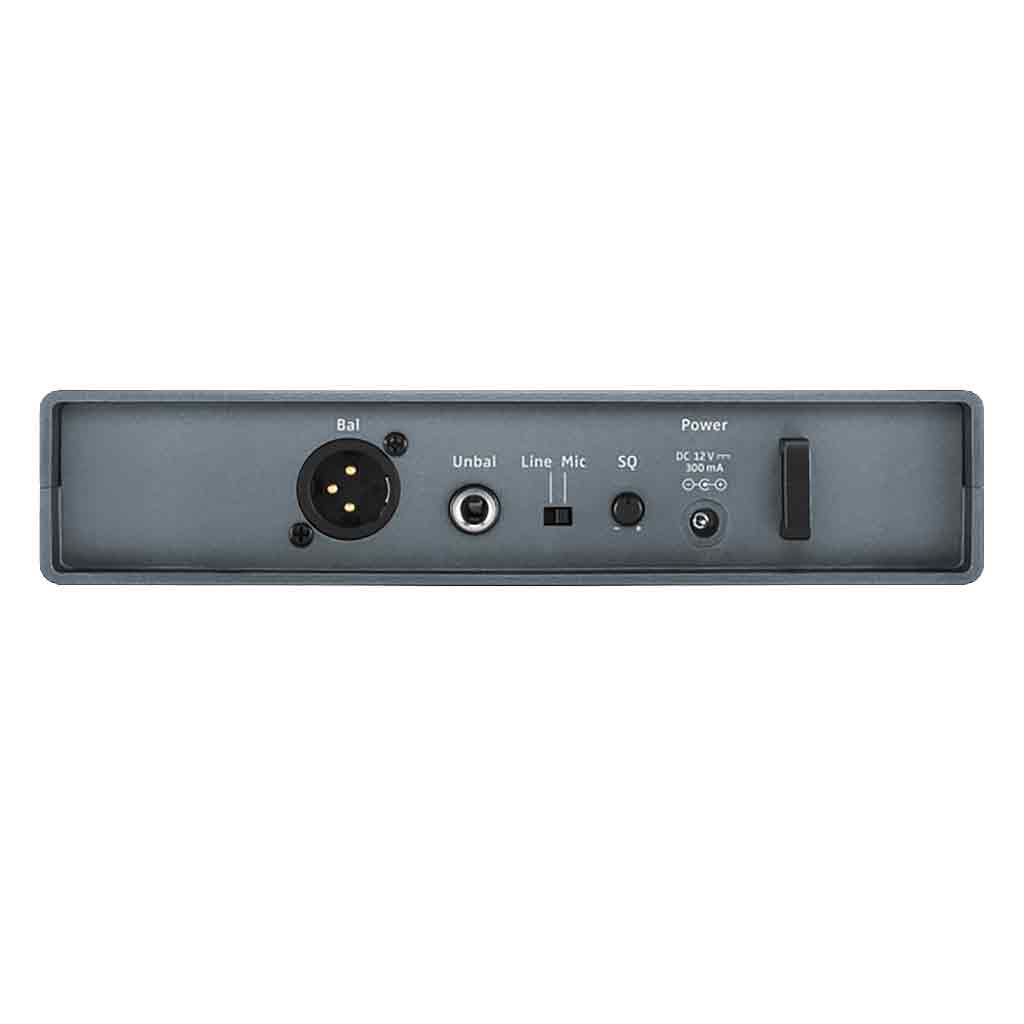

- Output voltage: 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
- Housing: rugged ABS housing
- Dynamic range: dynamic
- Frequency: 8 frequency banks, each with up to 10 factory-preset channels
- Frequency range: A: 548-572 MHz, GB: 606-630 MHzB: 614-638 MHzC: 766-790 MHzD: 794-806 MHzE: 821-832 MHz, 863-865 MHz K: 925-937.5 MHz
- Sensitivity: < 3 μV at 52 dB(A)RMS S/N
- Squelch: adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
- Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
- Input sensitivity: 1.5 mV / Pa
- Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
- Audio adjustment range: 45 dB, adjustable in 5-dB steps
- Line / Mic level: 20 dB, switchable
- Temperature Range: operation: 0°C to +40°C, storage: –20°C to +70°C
- Receiver Principle: double superheterodyne
- Diversity principle: Antenna switching diversity via internal antennas
Receivers
- Weight: approx. 340g
- Power supply: Receiver: 12 V DC nom. / 300 mA
- AF frequency response: Receiver: 50 to 16,000 Hz (–3 dB)
Microphone:
- Weight: approx. 245g
- Power supply: Microphone: 2 AA size batteries, 1.5 V
- AF frequency response: SKM 825: 80-14,000 HzSKM 835: 80-16,000 Hz
